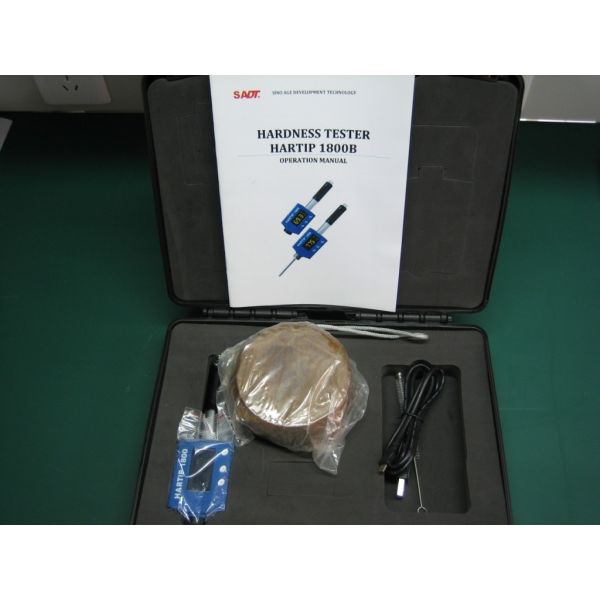

Portable integrated metal Hardness Tester Pen Shaped and Easy Operation

Brand Name : SADT
Model Number : HARTIP1800B
Certification : CE, ISO9001
Place of Origin : China
MOQ : 1set
Payment Terms : T/T, Western Union
Supply Ability : 500 Piece/Pieces per Month
Delivery Time : within 3 workdays after receipt of your advanced payment
Packaging Details : Delivery package: carton
Principle : Leeb hardness measurement
Hardness scale : HL/HRC/HRB/HB/HV/HS/HRA/σb
Materials : 10 common metal materials
Color : Blue/Red
Net weight (g) : 110
Dimension (mm) : 148x44x22
Memory : 4 blocks, 999 data for each block
Contact Now
HARTIP 1800B Metal Leeb hardness measurement Details

This instrument is an advanced state-of-the-art palm sized metal hardness tester with many new features which are light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc. It can be widely used for measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C, B &A, Brinell, Vickers, Shore and Strength.


This tester has a memory capacity of 4000 data. The measuring value can be printed out to micro-printer by RS232 or Bluetooth. All stored data can be recalled and read on the tester easily.


It also has a very unique feature, which impact device can convert between D and DL simply by changing impact body. This two-in-one probe is equivalent to two individual probes. With this optional accessory, you can take measurement at very narrow surface such as slot bottom, gear tooth that probe D cannot match.


KEY FEATURES

•Integrated design , easy operation

•Universal impact direction, it does not need to setup different impact direction, it will be recognized automatically

•Screen view displays in four different directions, more convenient to view

•Huge memories, data can be recalled easily

•it can connect to computer by USB or wirelessly

•Customer re-calibration allowed

•Statistics value can be calculated automatically

•With strength conversion value


Applications:


  • Hardness tests on installed machines or steel structures: e.g. on heavy and largework-piece or on permanently installed system parts.
  • Rapid testing of multiple measuring areas for examination of hardness variations over larger regions.
  • Measuring hardness for produced parts at production line.
  • Identifying metallic material stored in a warehouse.
  • Ineffectiveness analysis of permanent parts, pressure -vessel, turbo generator.

Specifications:


SADT HARTIP 1800B hardness tester
PrincipleLeeb hardness measurement
Accuracy±0.3% @ HL=800 / ±2HL
DisplayHigh contrast OLED
Hardness scaleHL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring rangeHL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / σb(rm)255-2639N/mm²

Impact deviceD
Materials10 common metal materials
Memory4 blocks, 999 data for each block , can be saved
and re-readable
Statistics functionAverage / Max. / Min. / S. value
Re-calibrationAllowed by user
IndicatorLow battery
Communication
interface
USB to PC for transferring data or printing, USB
for charging
Auto power offAuto
Power supply3.7V Li-ion rechargeable battery
Working environment-40ºC~+70ºC
Dimension (mm)148x44x22
Net weight (g)110
StandardsConforming to ASTM A956, DIN 50156, GB/T 17394-1998


Company Information


Sino Age Development Technology, Ltd. (SADT), established in 1993, is a leading manufacturer / supplier of measuring andtesting instrument, specialized in NDT and quality control fields.

We have our own HARTIP series portable hardness testerssince 1995.


Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, digital concrete hammer, gloss meter, colorimeter, roughness tester, handheld metallurgical microscope, ultrasonic flaw detector and so on.


Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc.


We are professional producer with ISO 9001 quality system. Most of the products are applied with CE certificate.
